Packaging unit

Pack with 20 pieces

Detailed information

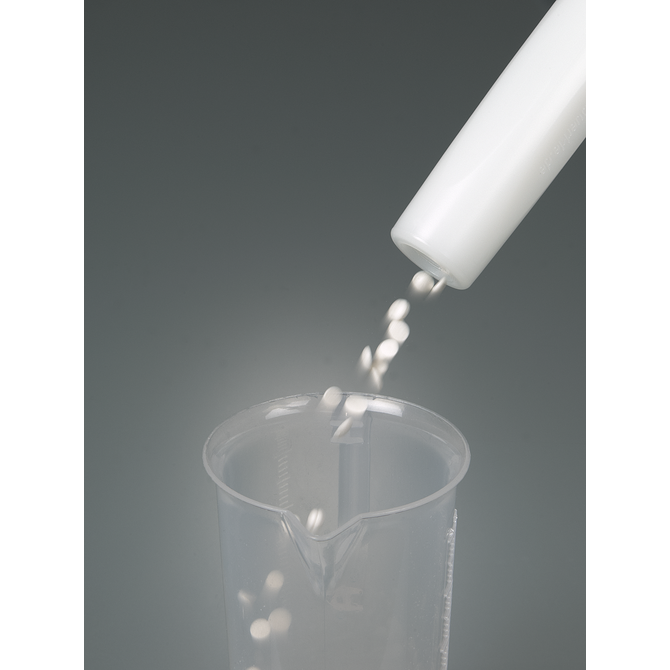

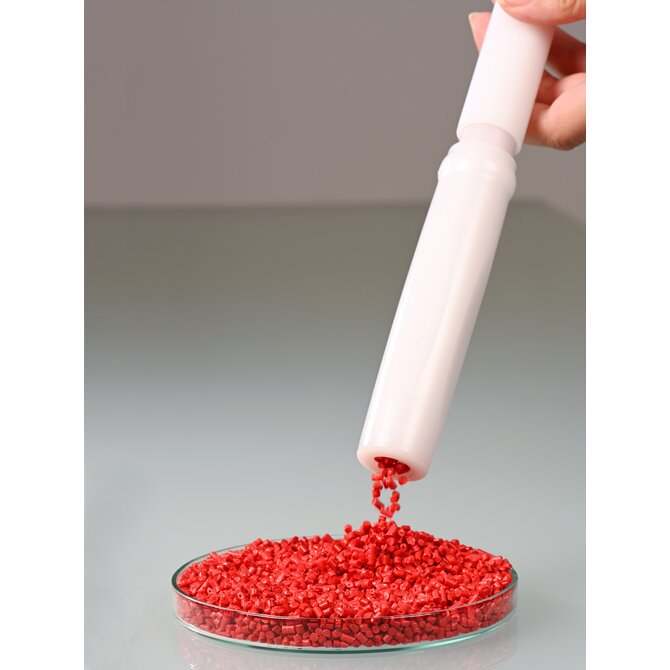

Disposable zone samplers for taking samples from multiple layers of the sample material. Suitable for free-flowing powders and small-grain granulates. The representative all-layer sample can be emptied directly through the open handle into a sample container.

Typical application area of the product

Disposable zone samplers for taking samples from multiple layers of the sample material.
  • 20x MultiDispo

Specifications

General material

PE-HD
High-density polyethylene (HDPE)

Sample chamber details

Sample quantity:
100 ml
Number of collection openings:
3 itms

Lance dimensions

Pipe Ø:
25 mm
Plunge depth:
500 mm
Total length:
643 mm
Outer Ø:
30 mm

Collecting chamber dimensions

Chamber length:
60 mm
Start of the collecting chamber:
26.6 mm
Chamber width:
9 mm
Distance between the chambers:
154 mm

Sampling lances

Sampling type:
All-layer sample
Grain size samples:
powdery/fine-grained,Medium-grained
Sample material:
free-flowing
Special properties Sample lances:
low weight,individually packed
To the list of chemical resistance
