Detailed information

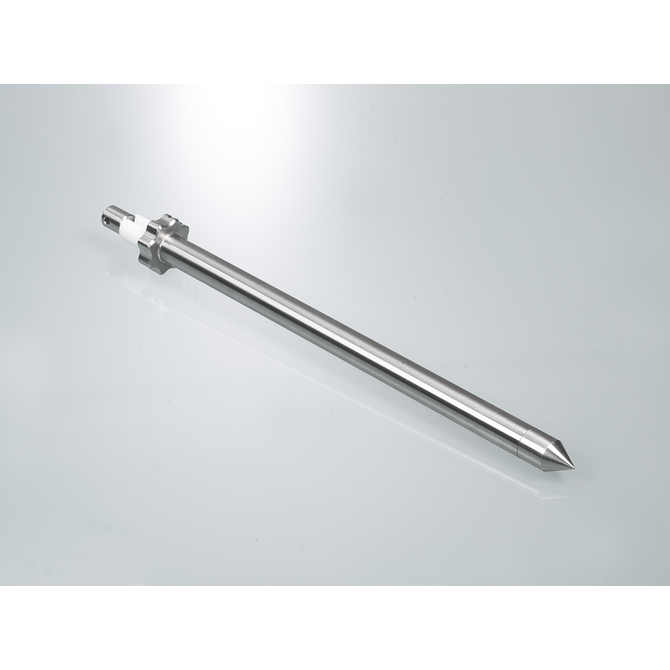

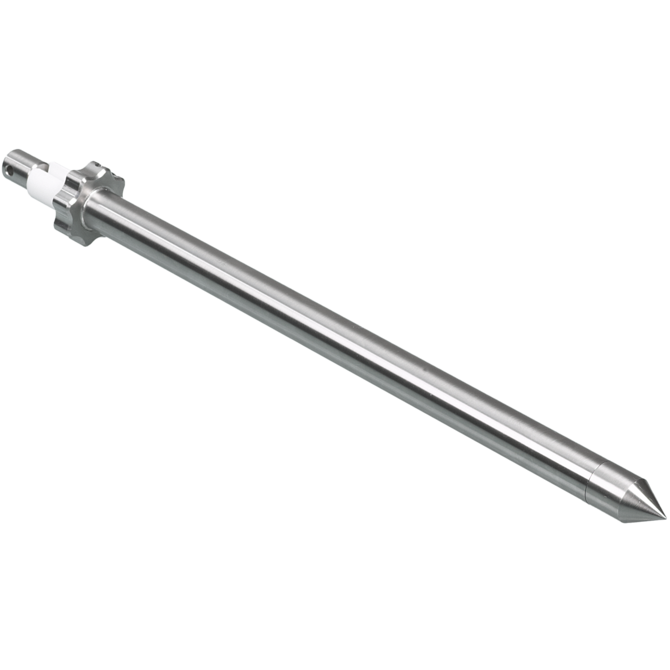

The core drill is the patented solution for the challenging sampling of bulk materials that tend to jam or stick due to their particle shape.

Compared to conventional multi-layer samplers for bulk materials, the two-part core drill has a gap-free design that prevents the particles from tilting during sampling. This guarantees professional and representative sampling through several layers, even with difficult powders and granulates such as glass beads or metal powder.

The areas of application range from sampling from big bags to small containers, with the core sampler demonstrating its strengths in both laboratory and industrial applications.

For particularly dense materials, sampling can be supported by a rubber mallet, which enables the core drill rod to be inserted and removed. The core drill can be easily dismantled for quick and thorough cleaning. The included fastening clip allows the drill rod to be quickly and easily locked into the sampling tube.

bk.product.scope_of_application.tab_headline

The core drill is ideal for use in industries that work with difficult bulk materials, including the chemical, pharmaceutical and materials industries, as well as laboratory and industrial applications where accurate sampling is required. It is particularly suitable for taking core samples from caking, non-flowing or abrasive bulk solids that are difficult to sample without the appropriate tools.
bk.product.utilization.tab_headline

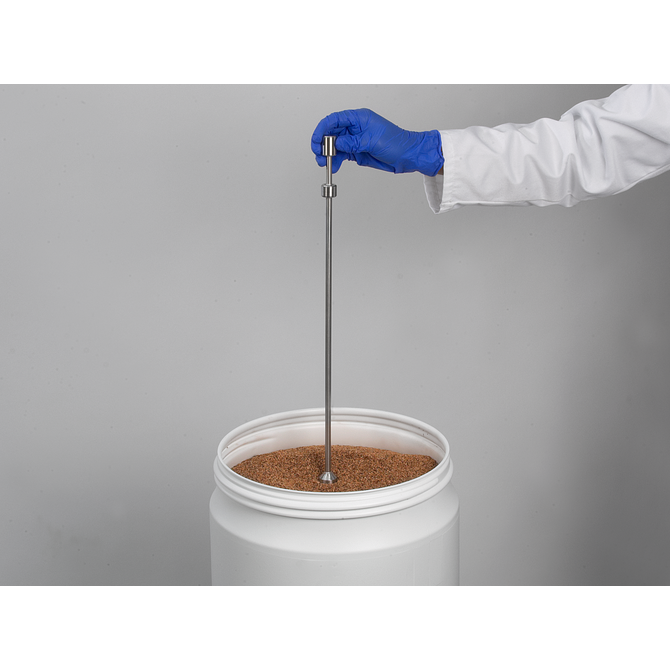

  1. Insert the drill rod into the sample medium.

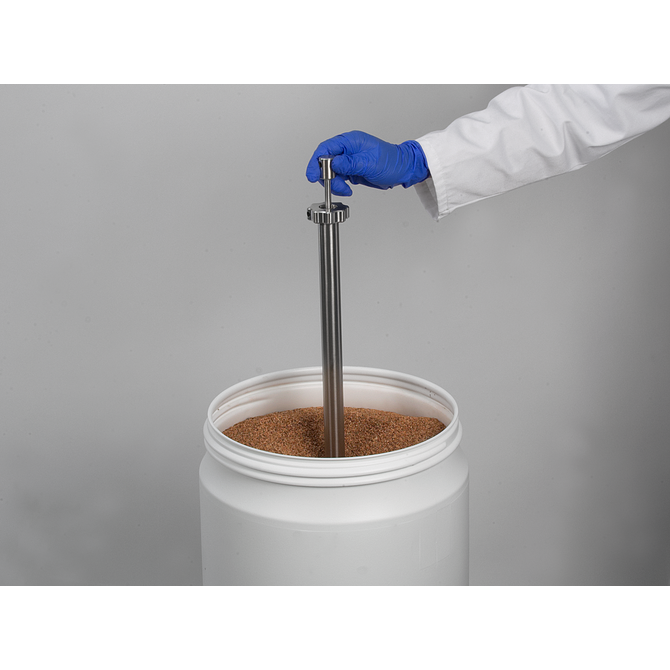

  2. Place the drill tube over the drill rod and insert it into the sample medium with a rotating movement.
  3. Insert the drill tube up to the centering ring of the drill rod.
  4. Hold the sampler on the drill rod and pull it out of the medium to be sampled.
  5. Open the sampler and empty the sample onto an appropriately prepared surface or container.
  6. After sampling, secure the drill pipe with a fastening clip if necessary, e.g. for horizontal sampling, transportation or storage.
5310-000x_kernbohrer_gebrauchsanleitung.pdf 5310-000x_kernbohrer_gebrauchsanleitung.pdf
  • Core drill (consisting of drill rod and drill tube)
  • Fastening clip

bk.product.specifications.title

bk.product.general_material.label

1.4404 (316L)
Stainless steel 1.4404, AISI 316L

bk.product.detail_material.label

PTFE
Polytetrafluoroethylene

Sample chamber details

Anzahl Sammelöffnungen:
1 itms
Probenvolumen gesamt:
110 ml

Lance dimensions

Rohr-Ø:
25 mm
Einstechtiefe:
400 mm
Gesamtlänge:
521 mm
Außen-⌀:
50 mm

Sampling lances

Probenahmeart:
All-layer sample/cross-section sample
Proben Körnung:
powdery/fine-grained,medium-grained
Proben Material:
free-flowing,cohesive,compacting/fixing
Besondere Eigenschaften Probenlanzen:
Removable tip
Spitze:
pointed
