Detailed information

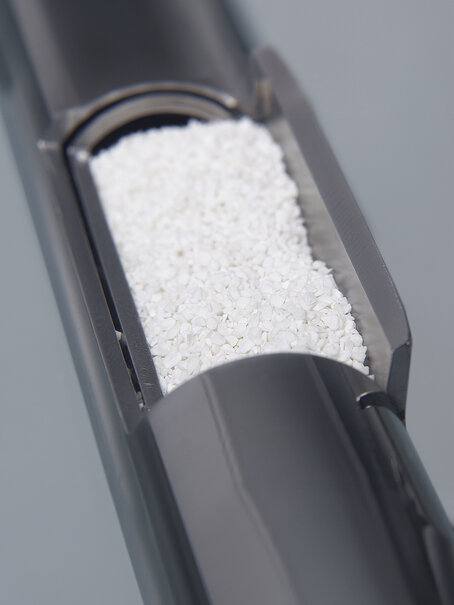

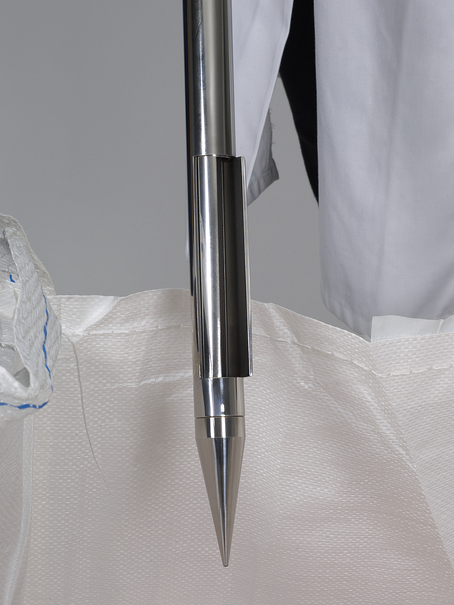

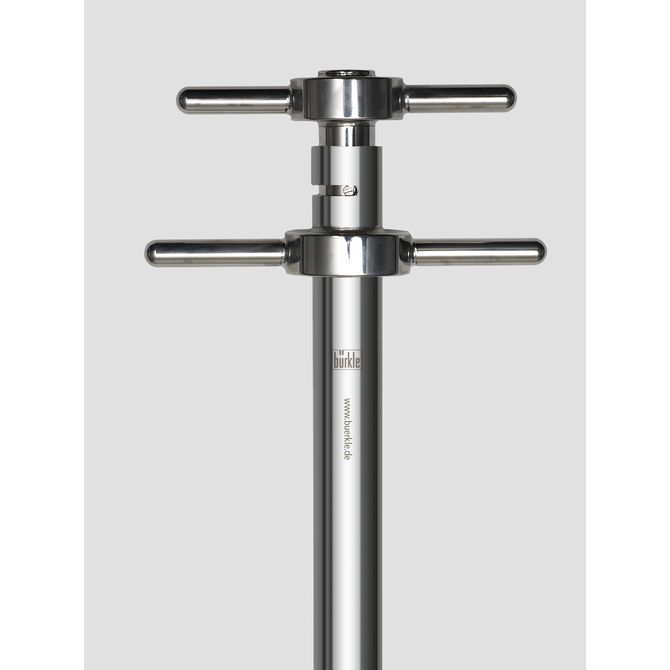

The Scratcher is a sampling lance that has been specially developed for sampling cohesive, caking and non-flowing substances. A scraper edge on the collection chamber transports the sample material directly into a sealable inner tube, enabling professional sampling even of cohesive powders and granulates. The scraper is ideal for target point samples from a specific plane. Despite its effective scraping edge, it is suitable for use in narrow openings from 32 mm (1.26 in.) diameter. Two additional handles allow safe insertion, fixing and rotation in the material, and the easy dismantling of the device facilitates thorough cleaning.

bk.product.scope_of_application.tab_headline

The scratcher powder sampler is widely used in laboratories and industries where precise sampling of non-free-flowing, clumping substances is required. This includes food, pharmaceutical, chemical and materials science, where precise and contamination-free samples are essential. Different sizes allow sampling from big bags, drums, small containers and other storage vessels.
bk.product.utilization.tab_headline

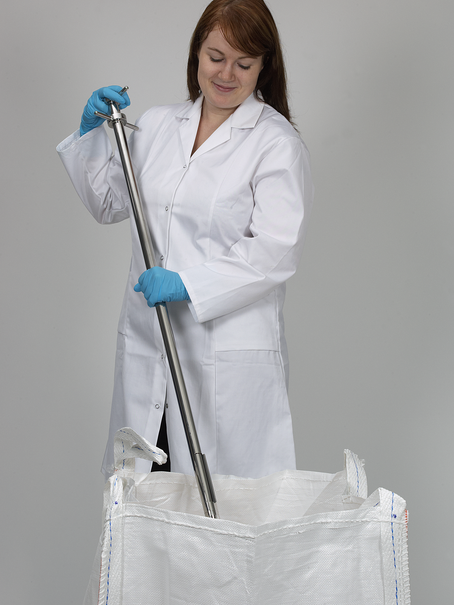

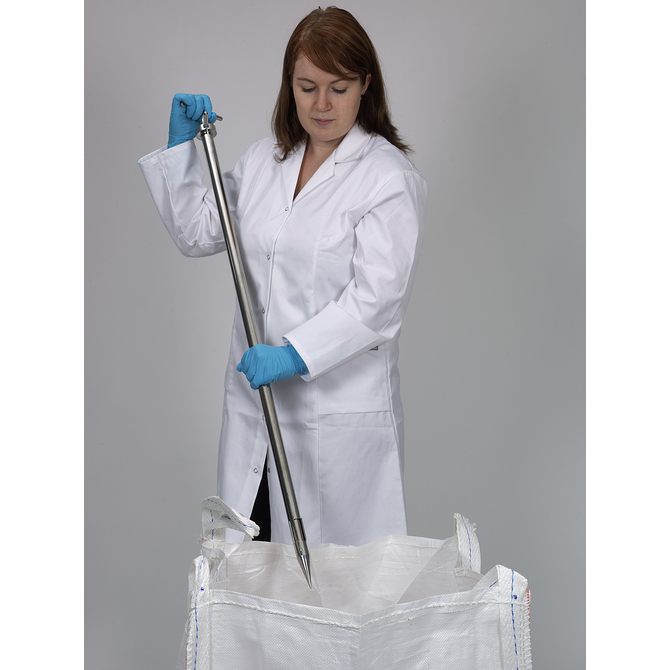

  1. Turn the upper handle of the sampling lance clockwise.
  2. The sampler is closed and can be inserted into the medium to be sampled.
  3. At the desired depth, turn the upper handle on the sampling lance counterclockwise, the collection chamber is now open.
  4. Rotate the sampler through 360°. The sample is conveyed into the sample chamber through the scraping edge.
  5. Turn the upper handle of the sample lance clockwise. The collector is closed and can be removed from the powder/granulate.
  6. If necessary, close the puncture point on the container.
  7. Turn the sampler upside down and empty the sample through the open inner tube into a suitable collecting vessel.
5347-00xx_scratcher_gebrauchsanleitung.pdf 5347-00xx_scratcher_gebrauchsanleitung.pdf
  • Scratcher powder sampler

bk.product.specifications.title

bk.product.general_material.label

1.4404 (316L)
Stainless steel 1.4404, AISI 316L

Sample chamber details

Anzahl Sammelöffnungen:
1 itms
Probenvolumen gesamt:
5 ml

Lance dimensions

Rohr-Ø:
25 mm
Einstechtiefe:
1000 mm
Gesamtlänge:
1100 mm
Außen-⌀:
32 mm

Collecting chamber dimensions

Beginn der Sammelkammer:
92 mm
Kammernbreite:
14 mm
Kammernlänge:
22 mm

Sampling lances

Probenahmeart:
Target point sample
Proben Körnung:
powdery/fine-grained,medium-grained
Proben Material:
cohesive,free-flowing
Besondere Eigenschaften Probenlanzen:
Removable tip,pointed tip
