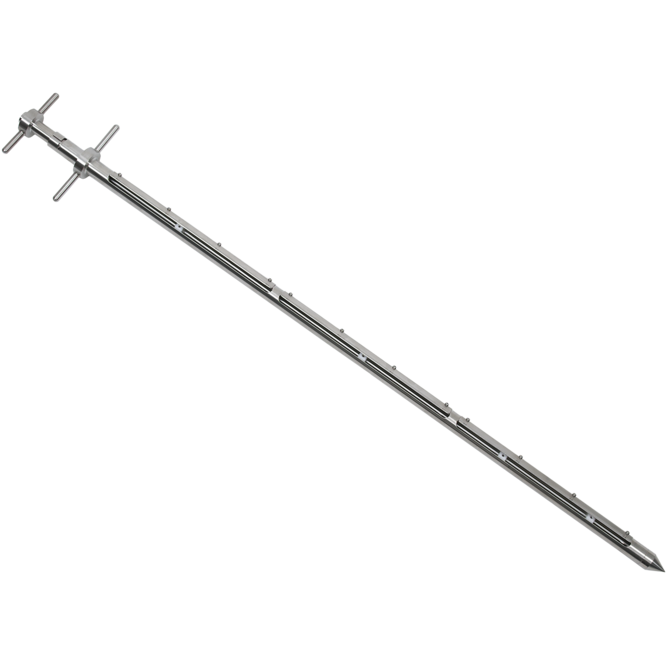

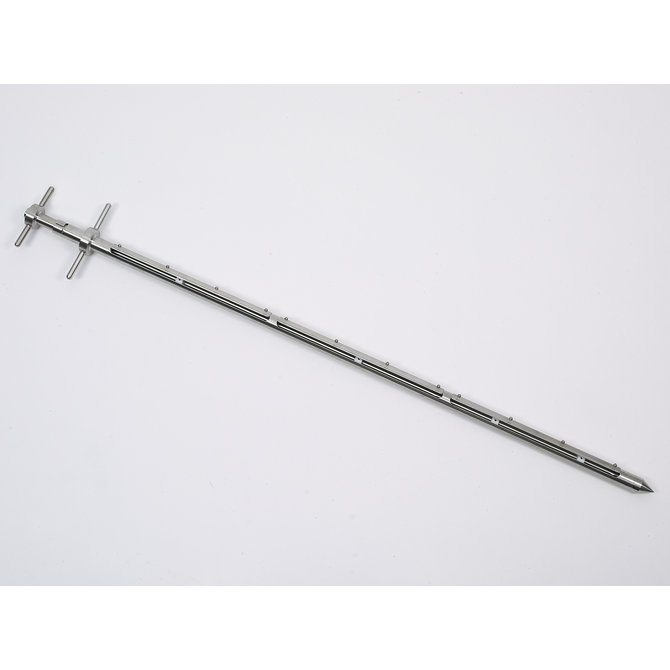

Sample lance scraper
All-layer or multi-point sampling of agglomerating powders and granulates
- With scraping edge for removing non-free-flowing materials

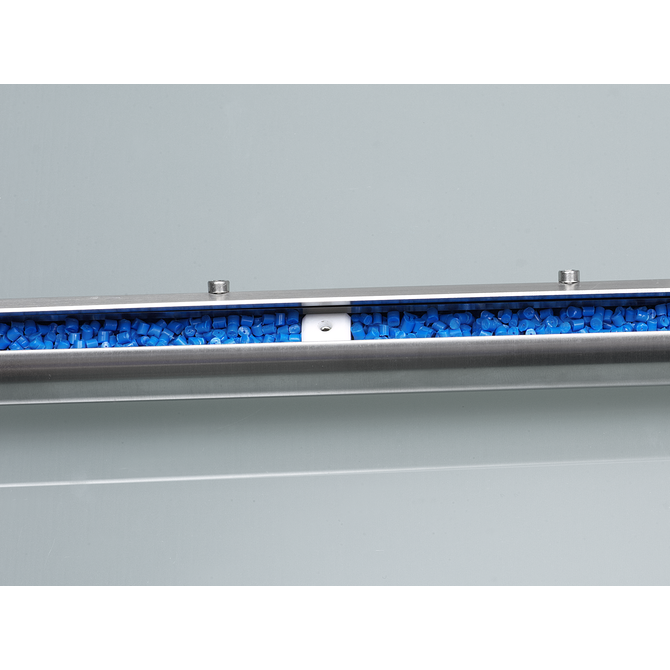

- Variable zones and adjustable sample volume thanks to movable PTFE separators
- Large collection volume from different layers without mixing
bk.product.packaging-unit.label
Piece
Detailed information
The sample lance scraper is particularly suitable for sampling non-free-flowing, coagulating powders and granulates. The scraper edge efficiently guides the material into a sealable inner tube for precise, contamination-free sampling. Variable zones within the inner tube can be individually adjusted by sliding PTFE separators to prevent mixing of samples and allow precise separation of different layers or areas. The sample lance is ideal for removing large volumes of sample from different layers without mixing materials.
Two additional handles allow for safe insertion, fixation, and rotation of the material, and easy disassembly of the instrument facilitates thorough cleaning.
bk.product.scope_of_application.tab_headline
The scratcher is primarily used in industries where non-free-flowing, cohesive powders and granules need to be sampled.
In the food industry, samples of compacted or moist powders are often required. In the pharmaceutical industry, accurate sampling of pharmaceutical powders and granules, which often tend to clump, is critical. Quality control and research often require samples of chemical powders and granules that do not flow freely. For the analysis of fertilizers or soil conditioners that cannot flow freely, the scraper provides an efficient sampling solution.
bk.product.utilization.tab_headline
- Pull out the inner tube and unscrew the stopper at the tip.
- Insert the desired number of separators into the inner tube and push into the desired position.
- Reinsert the inner tube and screw the plug tight.
- Turn the upper handle of the sampling lance clockwise.

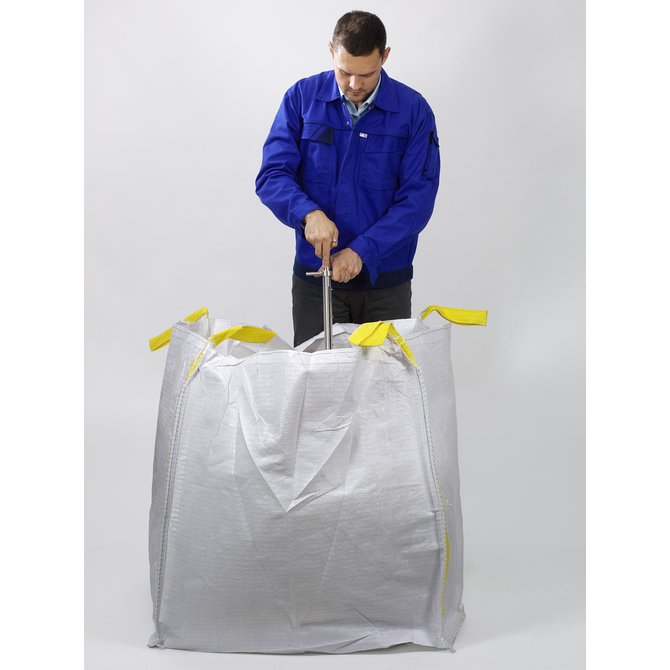

- The sampler is closed and can be inserted into the medium to be sampled.
- When the desired depth is reached, turn the upper handle of the sampling lance counterclockwise.

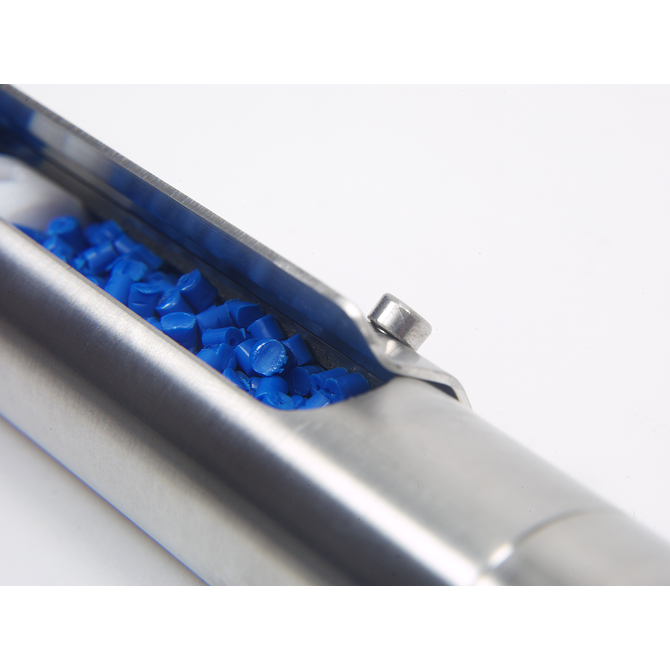

- Turn the sampler slightly. The sample is transported into the sample chamber through the scraping edge.
- Turn the upper handle of the sampling lance clockwise. The collector is closed and can be removed from the powder/granulate.
- Flowable samples can be emptied into a suitable collecting vessel via the open inner tube.
- Sample lance scraper
bk.product.specifications.title
bk.product.general_material.label
1.4404 (316L)
Stainless steel 1.4404, AISI 316L
bk.product.general_material.label
PTFE
Polytetrafluoroethylene
Sample chamber details
- Anzahl Sammelöffnungen:
- 3 itms
- Probenvolumen gesamt:
- 180 ml
Lance dimensions
- Rohr-Ø:
- 25 mm
- Einstechtiefe:
- 900 mm
- Gesamtlänge:
- 1092 mm
- Außen-⌀:
- 32 mm
Collecting chamber dimensions
- Kammernlänge:
- 282 mm
- Beginn der Sammelkammer:
- 60 mm
- Kammernbreite:
- 12 mm
- Abstand zwischen den Kammern:
- 13 mm
Sampling lances
- Probenahmeart:
- Multi point sampling
- Proben Körnung:
- powdery/fine-grained,medium-grained
- Proben Material:
- free-flowing,cohesive,compacting/fixing
- Besondere Eigenschaften Probenlanzen:
- Removable tip
