Packaging unit

Piece

Detailed information

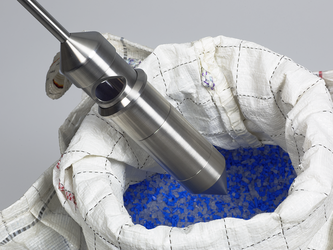

The SiloPicker is a target point sampler for sampling free-flowing bulk solids directly from silos and other storage containers. The SiloPicker simplifies sampling and enables target point samples to be taken efficiently from specific depths or layers. A special mechanism only opens the closure of the collection chamber when the desired depth is reached and the collector is retracted again. In this way, targeted samples can be taken for analysis or several samples can be collected to produce a representative composite sample.

The design of the collector makes it easy to penetrate the bulk material and take the desired sample without disturbing the surrounding material. However, the possible sampling depth is influenced by the density of the bulk material.
The SiloPicker can be disassembled into its individual parts for easy cleaning.

Typical application area of the product

The SiloPicker is used to check the consistency and quality of bulk goods, ensuring they meet specified standards. Applications include storage monitoring for the early detection of spoilage, contamination or other quality losses; taking samples for analysis to examine the properties of bulk goods; taking samples of grain, animal feed and other agricultural products directly from silos in agriculture; and taking chemical powders and granulates for quality and safety tests in the food or chemical industry.
How to use the product

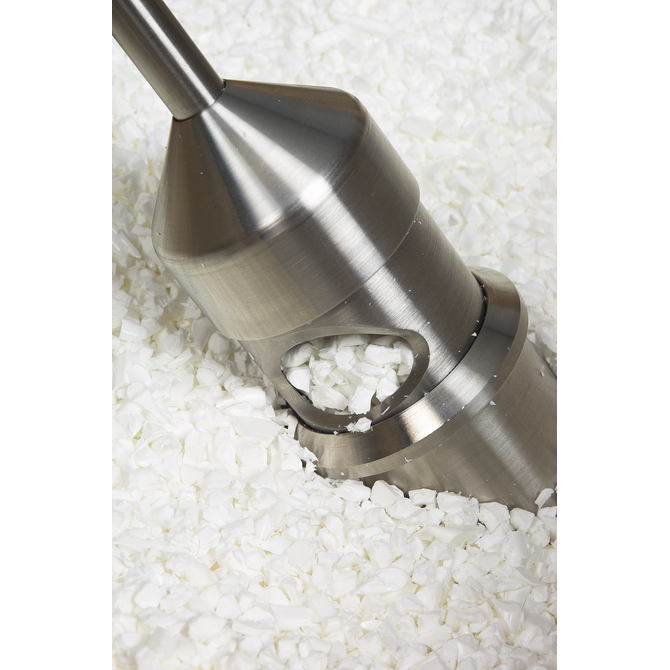

  1. Immerse the sampler to the desired depth in the medium to be sampled. The sealing sleeve closes the filling opening.
  2. At the desired depth, pull the sampler back approx. 10 cm. This causes the sealing sleeve to open the filling opening.
  3. Move the sampler slightly up and down. This fills the sample container with the medium to be sampled.
  4. Pull the sampler out of the medium.
  5. Unscrew the lower part of the sample container and empty the sample into a suitable collecting vessel.
5340-1100_silopicker_gebrauchsanleitung.pdf 5340-1100_silopicker_gebrauchsanleitung.pdf
  • SiloPicker

Specifications

General material

1.4404 (316L)
Stainless steel 1.4404, AISI 316L

Collector dimensions

Plunge depth:
1200 mm
Total length:
1300 mm
Outer Ø:
50 mm

Sample chamber

Number of collection openings:
2
Sample quantity:
100 ml
Start of the collecting chamber:
143 mm

Sampling lances

Sampling type:
Target point sample
Grain size samples:
powdery/fine-grained
Sample material:
free-flowing
Special properties Sample lances:
Removable tip
Top:
pointed
To the list of chemical resistance

The SiloPicker can be extended with extension rods up to a maximum length of 350 cm, so that bulk materials can also be reached in deeper areas of the silo with this sampler.

Complementary products

Wide neck bottle LDPE Wide neck bottle LDPE

Wide neck bottle LDPE

The large neck opening of the wide neck bottle makes filling, taking out and emptying easy. The liquid-tight screw cap ensures safe transport and storage. LDPE bottles are easy to squeeze and comfortable to handle.
Wide neck bottle PP Wide neck bottle PP

Wide neck bottle PP

The large neck opening of the wide neck bottle makes it easy to fill, remove and empty. The liquid-tight screw cap ensures safe transport and storage. The wide-mouth bottle is made of PP, which is highly resistant to chemicals and can be autoclaved.
SiloPicker extension

SiloPicker extension

The SiloPicker extension is an accessory for the SiloPicker sampler. The extension rods enable sampling from a depth of up to 350 cm.
Wide-neck jar, square, PVC Wide-neck jar, square, PVC

Wide-neck jar, square, PVC

The square, wide-mouth transparent jar is made from high quality, tough and durable PVC. The PVC offers high break resistance and is easy to see through. The high transparency of the material allows quick identification of the contents.
Aluminium bottle Aluminium bottle

Aluminium bottle

The robust and versatile aluminium bottle with tamper evident screw cap meets the highest safety and quality standards for the storage and transport of substances and retained samples. UN approved for maximum safety and reliability.
Transport case, large

Transport case, large

The large transport case is a plastic case with a foam insert. It features a sturdy carrying handle, snap locks, and pick-and-pluck foam on the inside. Thanks to its hard outer shell, sensitive devices are protected from shocks during shipping or when carried in the field.
The case is light enough to be carried with ease, yet still offers ample space for equipment and essential accessories (tubing, adapters, tools). This transport case keeps your equipment organised, protected, and portable – no loose accessories flying around, no accidental knocks to the devices.

Similar products

SiloDrill Alu tank and silo sampler SiloDrill Alu tank and silo sampler

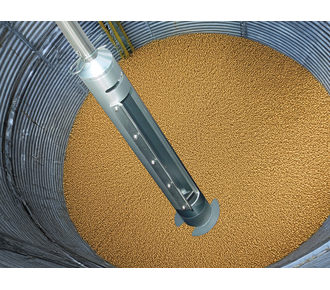

SiloDrill Alu tank and silo sampler

The SiloDrill is a specialised sampler for taking samples of bulk materials from silos or tanks. It collects samples from multiple layers of the material, enabling the analysis of the entire stored volume.
Tank and silo sampler SiloDrill AISI 304 Tank and silo sampler SiloDrill AISI 304

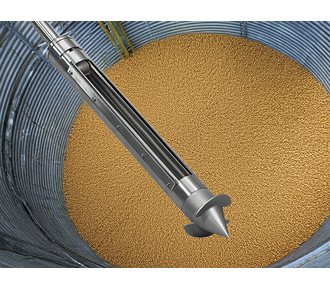

Tank and silo sampler SiloDrill AISI 304
