Detailed information

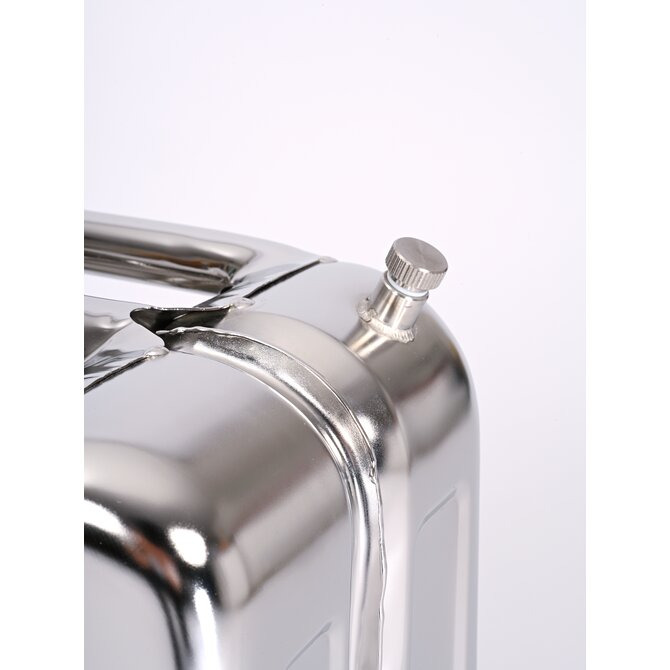

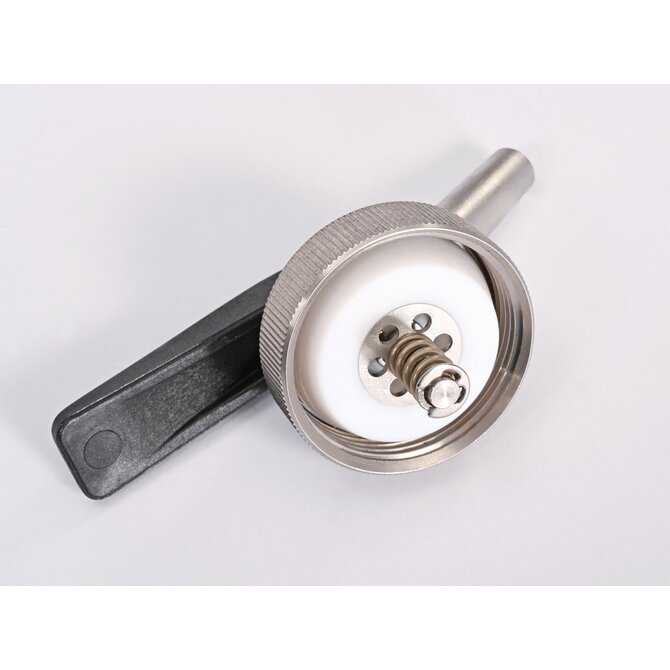

This stainless steel safety canister is designed for storing and dispensing flammable liquids. The self-closing dispensing valve allows for controlled dispensing and prevents the liquid from continuing to flow unintentionally. A separate venting system via the vent screw improves air exchange during filling, thereby enabling a more even pour. During storage, manual pressure equalization can also be performed via the vent screw. Starting at approximately 0.3 bar, a pressure relief valve in the tap ensures automatic pressure equalization.

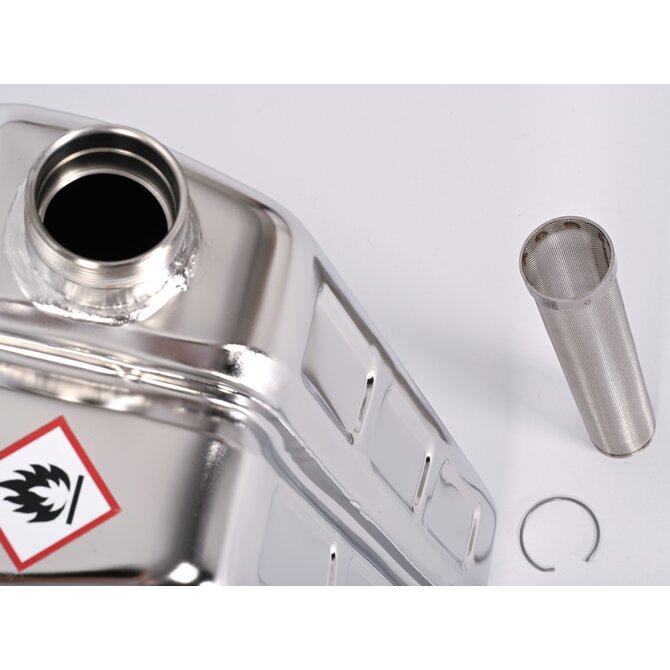

Stainless steel safety canisters enable the professional and controlled handling of flammable liquids in laboratories, industrial settings, and production facilities. Their robust stainless steel construction is designed for regular use under demanding conditions. Thanks to the use of high-quality stainless steel and chemically highly resistant PTFE, the canisters are suitable for a wide variety of liquids. An integrated flame arrestor ensures the safe handling of flammable substances. The compact, space-saving design facilitates integration into existing storage and work areas. The standardized G-1-1/2" male thread also allows for the use of compatible fittings and accessories.

Typical application area of the product

The safety canister is particularly suitable for workplaces where flammable liquids are required on a regular basis. In production, laboratories or maintenance departments, the precision dispenser allows for controlled dispensing directly from the storage container, whilst the separate ventilation system ensures a steady flow.

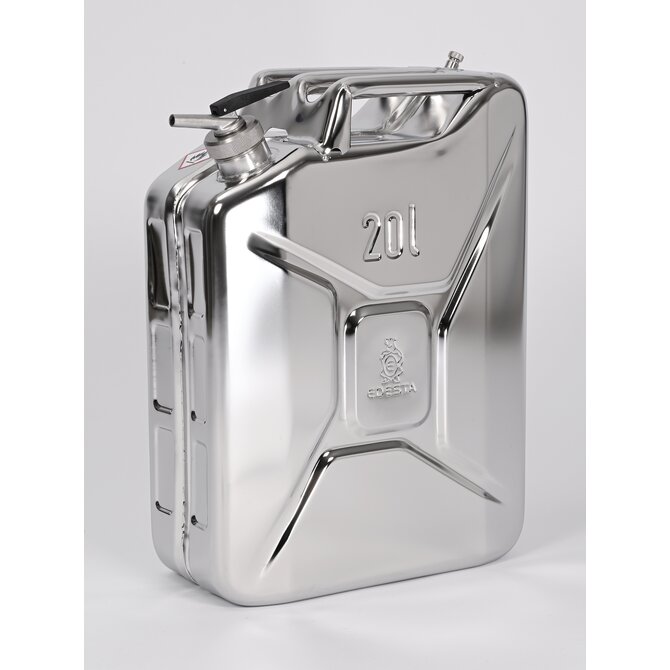

  • Stainless steel safety canister, with precision dispenser and vent screw

Specifications

General material

1.4301 (AISI 304)
Stainless steel (1.4301), AISI 304

Further materials

PTFE
Polytetrafluoroethylene

Closure

Closure type:
Screw cap with tap

Volume

Contents:
20 l

Thread

Thread:
G 1 1/2 Zoll
Version:
External thread

Dimensions

Length:
345 mm
Width:
175 mm
Height:
470 mm

Thick material

Material thickness:
0.8 mm

Properties

Safety container equipment:
with excess pressure valve,with venting screw,with tap

Canister

Special properties canister:
for flammable liquids,Suitable for hazardous substances (UN hazardous goods approval),with venting/dosing valve

Safety container

Area of application Container:
Store,Filling
To the list of chemical resistance
