Packaging unit

Piece

Detailed information

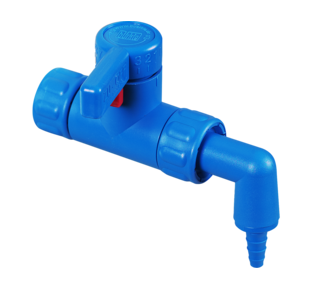

This polypropylene ball valve is ideal for the controlled regulation, metering, and draining of liquids from containers. It fits containers with a G 3/4" connection thread and can be connected to many other container types using optional threaded adapters. As a result, it offers a high degree of flexibility for daily use in industry, laboratories, production facilities, and workshops. Its robust, industrial-grade construction ensures long-lasting and reliable performance, even under regular use. The chemically resistant polypropylene (PP) material is suitable for many liquids and supports the safe handling of various media. Especially with crystallizing media, the well-thought-out design reduces the risk of clogging and malfunctions. The connecting union nut allows for vertical and precise positioning of the valve on the container. Additionally, the tap can be freely adjusted so that it can be optimally adapted to the specific application. If necessary, a hose can be connected to transfer liquids in a controlled manner to other containers or areas of the facility.

Typical application area of the product

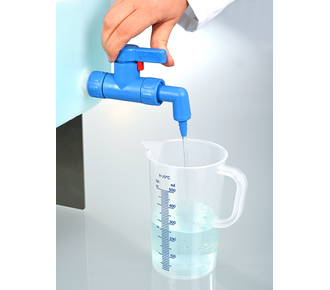

The ball valve is suitable for draining liquids from storage, dosing, and process tanks in industrial and laboratory-like environments. In production, it can be used to divert media in a controlled manner into smaller containers, collection tanks, or process vessels. Thanks to its discharge angle and the ability to connect a hose, it supports clean workflows during removal, transfer, or dosing. It is particularly practical for use with containers that are regularly emptied or integrated into existing liquid processes.

RoHS

85xx-xxxx_zer02_v01_en_ex_0500-0534-xxxx_70103.pdf

PP Ball Valve

Specifications

General material

PP
Polypropylene

Further materials

PE-LD
Low-density polyethylene (LDPE)

Further materials

PVC
Polyvinyl chloride

Connection

Connection type:: Thread
Thread:: G 3/4 Zoll
Version:: Cap nut

Colouring

Colour:: black/red

Spigot outlet

Outer outlet Ø:: 16 mm
Outlet type:: Angle discharge with spout

Nominal Ø

Nominal diameter:: 11 mm

Operating pressure (at +20 °C)

Pressure max.:: 4 bar

Dimensions

Length:: 161 mm
Width:: 80 mm
Height:: 106 mm

Type of spigot

Design of the stopcock:: ball valve
Flow rate:: low flow rate
Special features:: Tap can be freely positioned,Extensive accessories

To the list of chemical resistance
