Multi sampler

In our catalogue you will find this product on page 65

Look up in our leaf-through catalogue

Configure your version

Item number: {config.singleVariant.number}

Item in stock, subject to prior sale. Extended delivery time. Exact date of delivery available on request. For delivery time please select a version

from:

--.--

from {config.singleVariant.discountQuantity}: from x: --.--

Prices excluding VAT

At a glance

  • Aluminium, AISI 316L (1.4404) or AISI 316L/PTFE
  • Version made of AISI 316L (1.4404)/PTFE with low weight due to PTFE sample chambers.
  • With colour coding system
  • 25 mm Ø
  • Smallest possible gap between the inner and the outer tube
  • Easy cleaning, removable tip

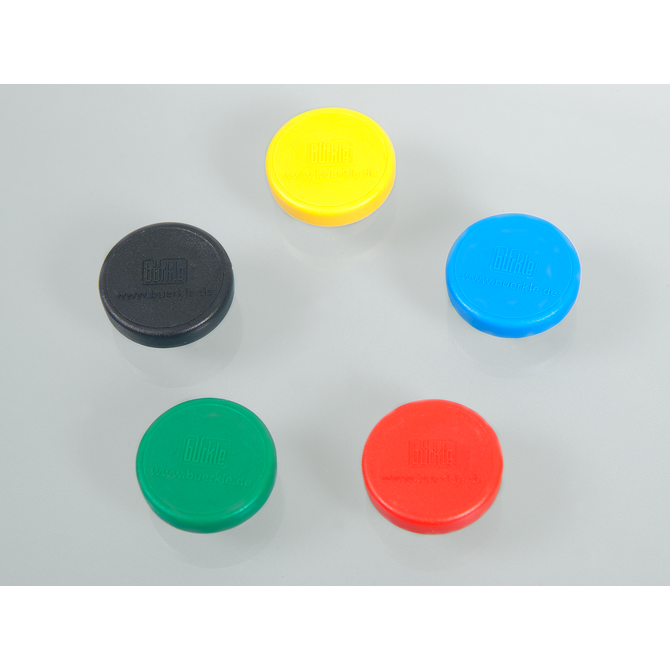

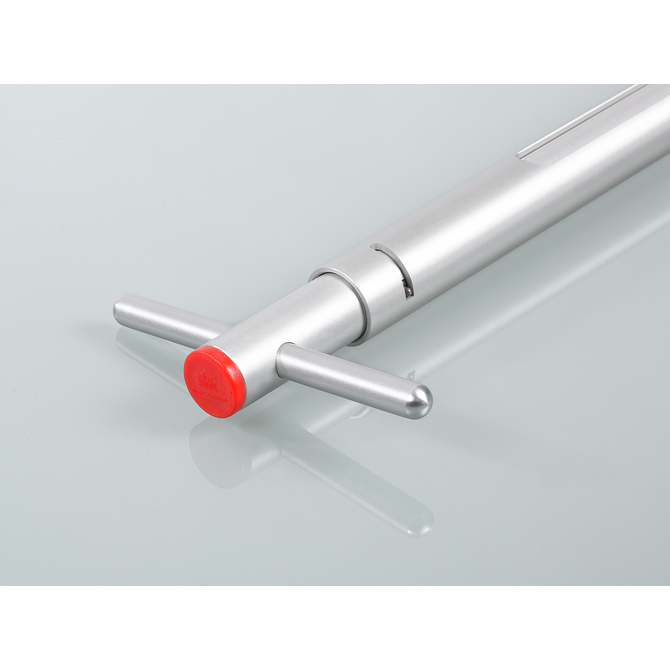

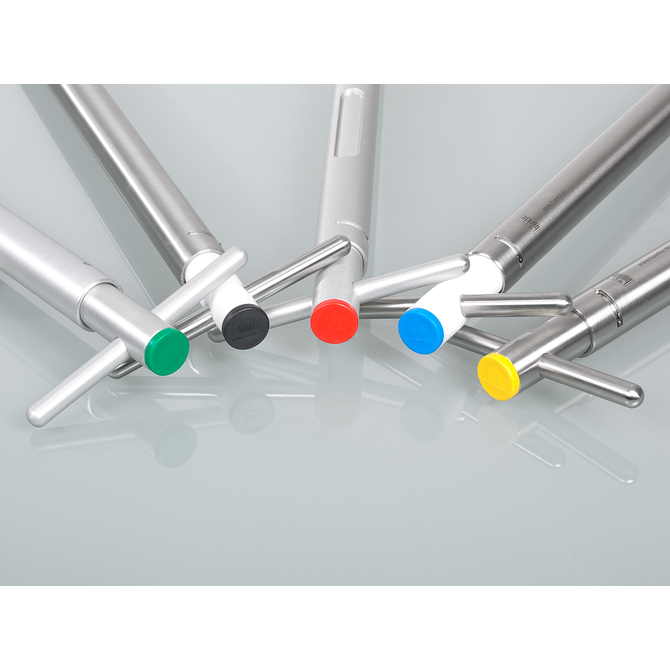

  • Colour coding (Multi and Uno sampler)
  • Ultra-pure materials
  • Excellent processing, robust model

Please note

  • Warranty period 3 years
  • Suitable for use with foodstuffs
  • Autoclavable up to max. 121 °C 20 min.
  • Produced according to DIN norm

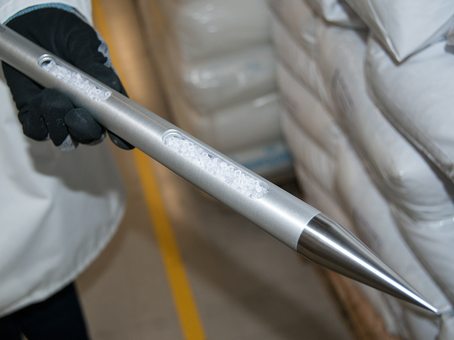

Multi sampler with several closed chambers, for multi point sampling from several predetermined sampling depths.

Bürkle zone samplers are used for taking samples of bulk goods of any kind.

The big advantage of zone samplers is that all-layer samples can be collected from all layers of the container.

Various bulk goods can be collected with the lances, from the finest powder to large grains such as corn or nuts.

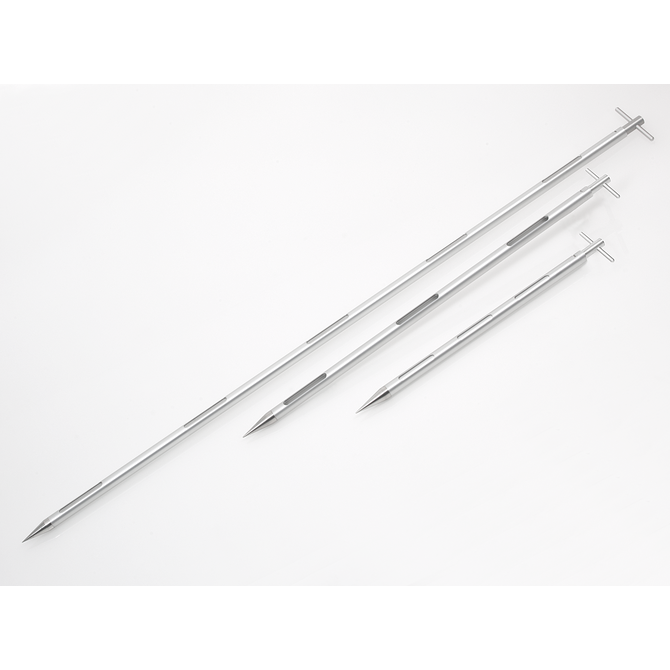

The zone samplers are available in different lengths. 55 cm (only Multi, Uno and All-layer sampler) especially suitable for sacks, 85 cm long (especially for barrels, tubs, mixed containers) and 150 cm as well as 250 cm (only Jumbo sampler) for big bags, silos, tanks.

Safe and reliable sampling is made even easier with useful special accessories such as sealing sleeves, Quali-Paper, cleaning brushes, emptying devices and close-it control seals.

The zone samplers are available in different models for different sampling tasks.

Use

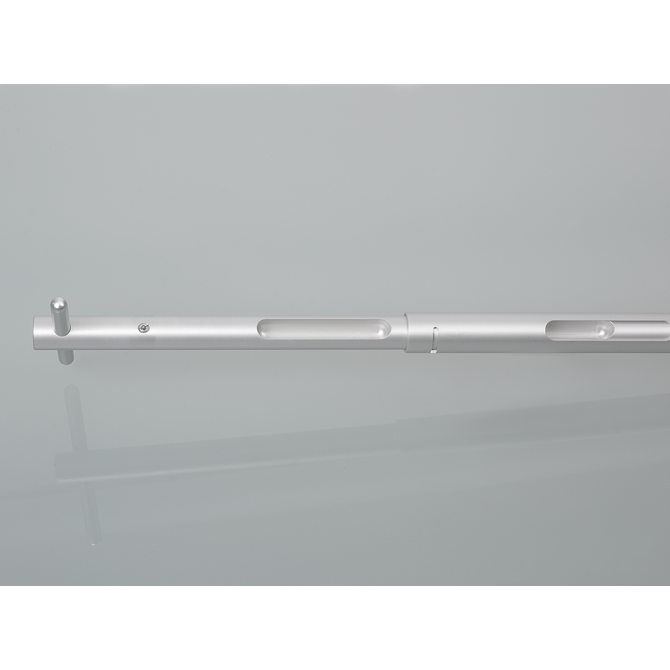

  1. Turn the handle, close the chambers.

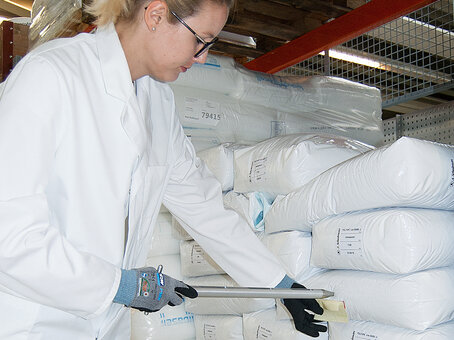

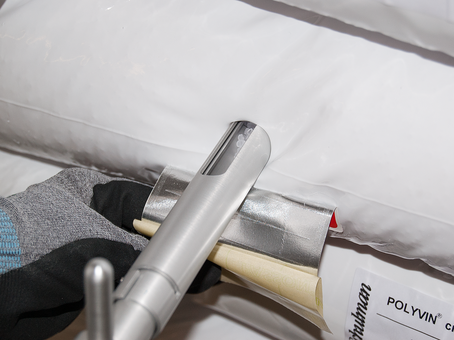

  2. Insert the sampler to the required depth.

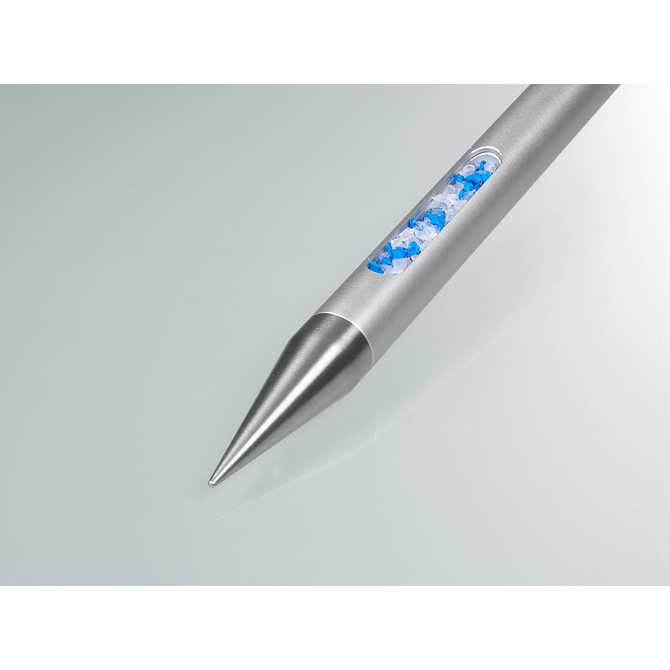

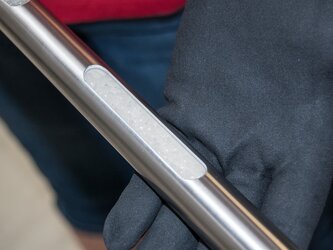

  3. Open the chambers, sample flows into the chamber.
  4. Close the chambers.
  5. Pull out the sampler.

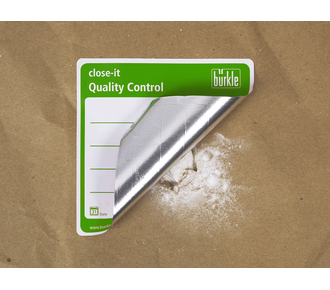

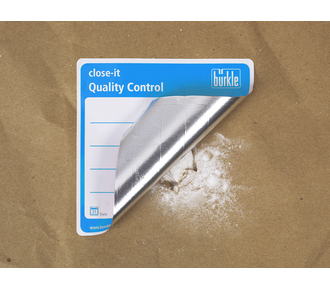

  6. Close the insertion opening with the close-it control seal.
  7. Empty the chambers onto Quali-Paper or with the emptying device.
