Name: Mini solvent pump
SKU: 5603-4000
Price: 524.05 EUR

Packaging unit

Piece

Please note

Caution! When handling flammable or highly flammable liquids, the explosion protection guidelines must be observed. All parts must be earthed (e.g. using the anti-static set).

Detailed information

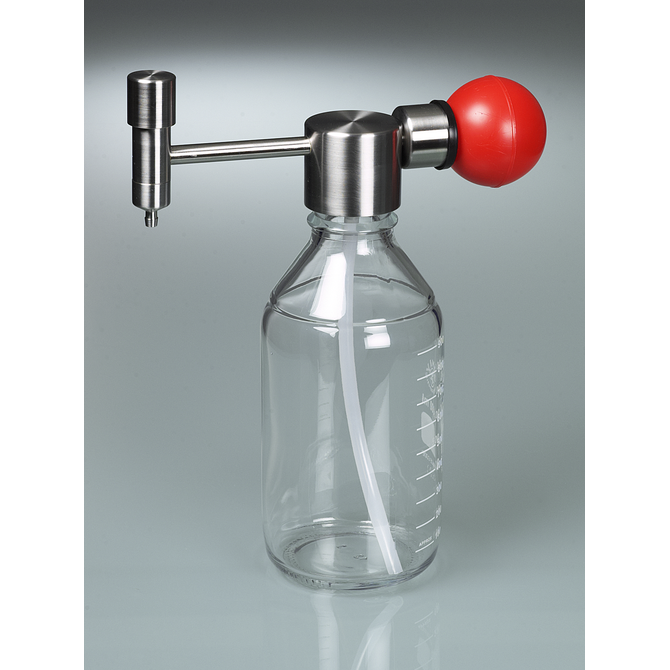

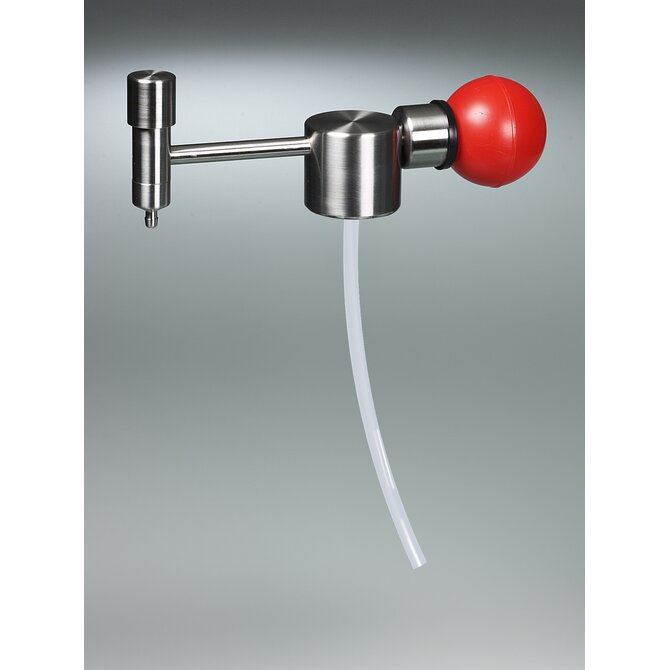

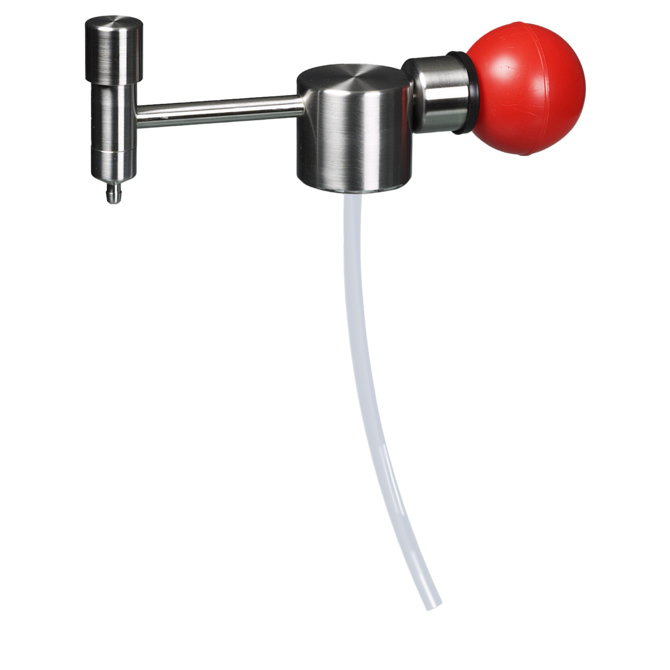

The Mini solvent pump dispenses and fills solvents and highly flammable liquids in small quantities precisely and safely. The high-quality hand pump is suitable for small containers such as bottles, canisters and containers up to approx. 10 liters.

The hand pump works according to the overpressure principle. With the help of the pump ball, an overpressure is generated in the container, which pushes the liquid outwards. As a result, only the hose, pump head and outlet come into contact with the liquid to be filled. This ensures optimum chemical resistance. All wetted parts of this hand pump are made of the high-quality and inert materials PTFE and stainless steel, which are characterized by excellent chemical resistance. The Mini solvent pump is therefore particularly suitable for use with high-purity liquids and highly flammable media such as acetone, isopropanol, ethanol, methanol, etc.

For safety, a pressure relief valve protects the solvent pump from excessive pressure build-up, e.g. due to solar radiation.

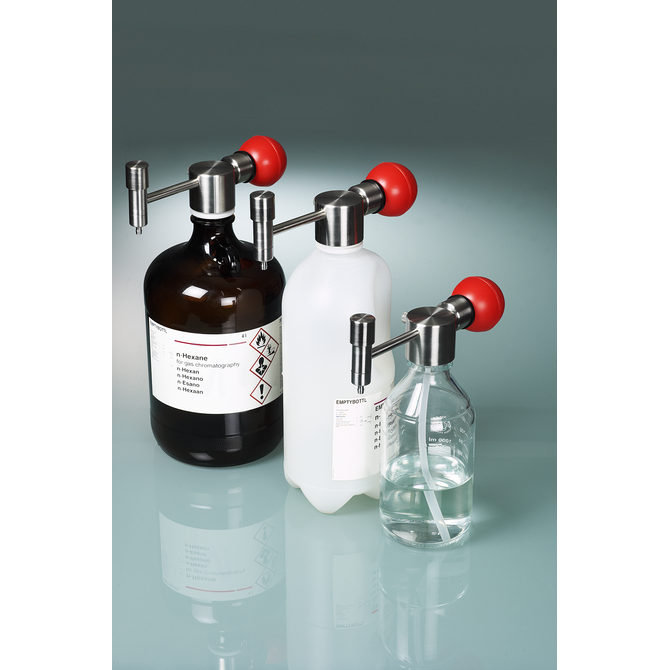

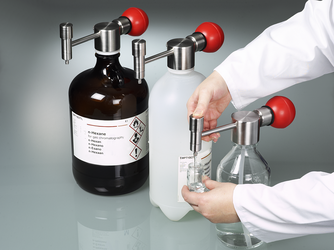

The solvent pump can be used to fill from different container sizes. The flexible PTFE hose, which pumps the liquid out of the container, can be shortened as required. This enables optimum residual emptying, even from bottles and canisters with a curved base.
The hand pump has a standard GL 45 connection thread, but can easily be adapted to containers with thread sizes S 40, GL 38 or GL 32 using thread adapters (accessories).

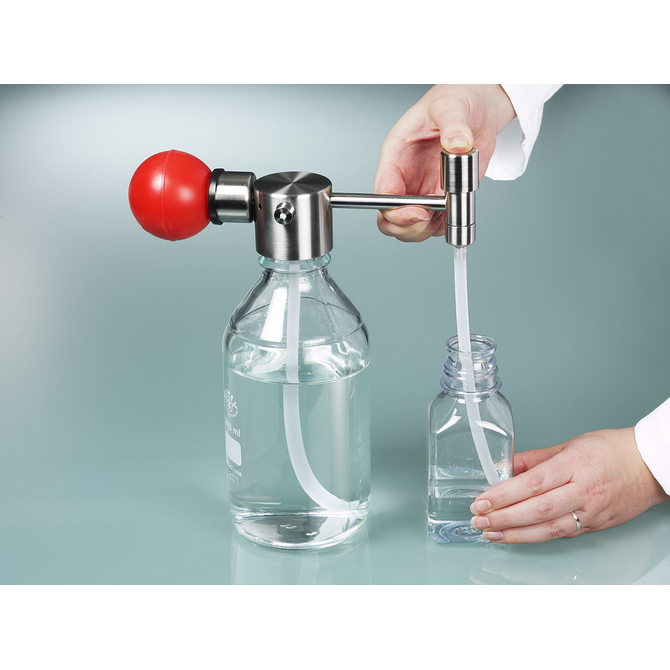

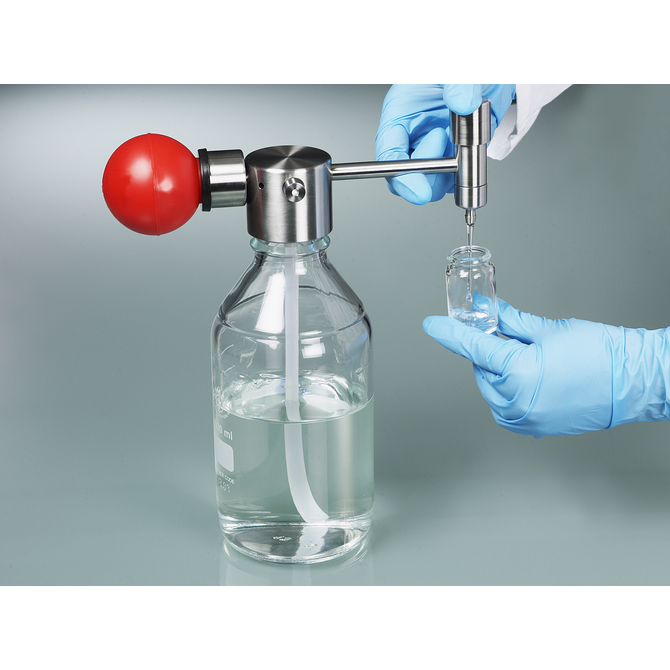

The self-closing outlet (auto-stop function) of the Mini solvent pump enables absolutely precise filling without dripping. Thanks to the simple dosing, even the smallest containers, e.g. test tubes, can be filled without any problems. A hose (inner Ø 6 mm) can be attached to the outlet nozzle as an option, so that containers further away can also be filled safely.

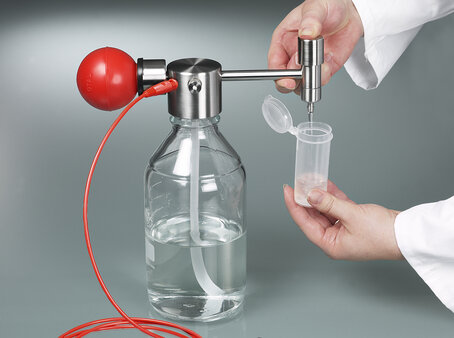

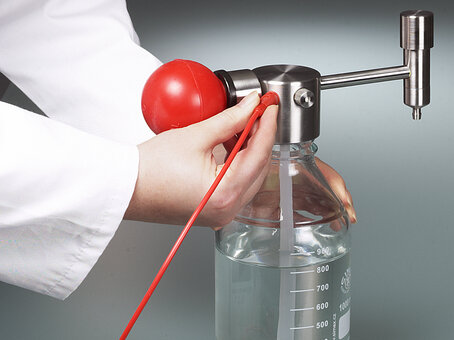

For filling in potentially explosive atmospheres, the supplied earthing cable can be easily connected to the solvent pump using a bundle plug, electrostatic charges are dissipated and flammable media can be filled safely.

The Mini solvent pump is particularly compact and well-balanced for tilt-proof filling, even from small containers.
Thanks to its robust design and high-quality materials, the durable solvent pump enables safe and clean filling in the simplest and most convenient way.

Typical application area of the product

The Mini solvent pump is suitable for applications where only small quantities of solvent are required. It enables the precise dosing of reagents and the safe handling of solvents, even in potentially explosive atmospheres.

The small quantity pump empties bottles, canisters and containers up to approx. 10 liters precisely, safely and efficiently. For safe filling and dosing of small quantities of solvents and highly flammable liquids.

How to use the product

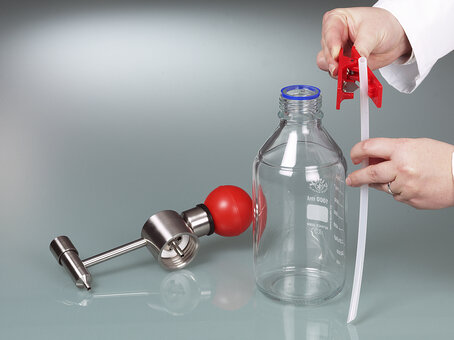

If necessary, shorten the PTFE hose and attach it firmly to the suction nozzle of the pump; the hose must protrude into the liquid to be filled.

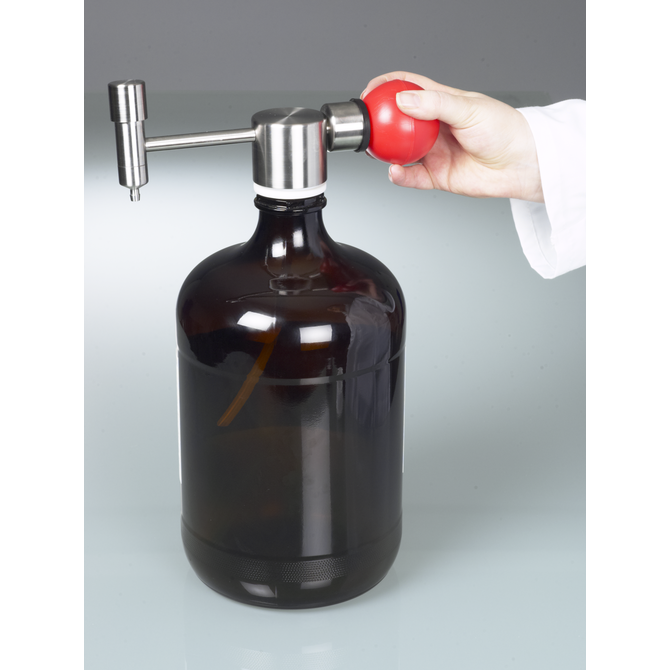

Screw the pump airtight onto the container.
Actuate the pump ball by hand, overpressure is built up.

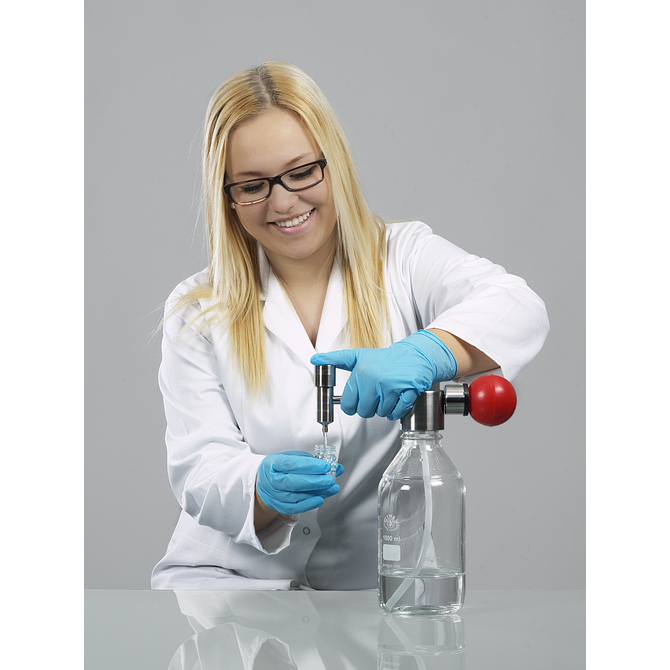

Hold the filling container under the outlet, press the outlet button and fill. If required, a PTFE hose can be connected to the outlet.

Material

5603-xxxx_zer12_v05_en_ex.pdf

5603-4000_loesemittelpumpe_mini_gebrauchsanleitung.pdf

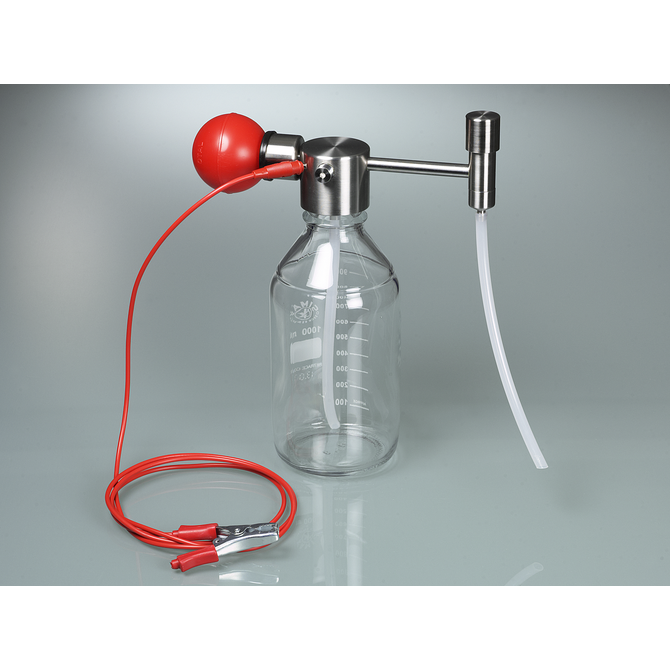

Mini solvent pump
Earthing cable 2 m
PTFE hose (6x8 mm), length 0.4 m

Specifications

General material

1.4301 (AISI 304)
Stainless steel (1.4301), AISI 304

Further materials

1.4404 (316L)
Stainless steel 1.4404, AISI 316L

Further materials

PTFE
Polytetrafluoroethylene

Connection

Connection type:: Thread
Thread:: GL 45
Version:: Internal thread

Throughput

Conveying capacity:: 1.8 l/min

Limit values

Viscosity up to:: 500

Pump outlet

Length of discharge tube:: 104 mm
Outlet type:: Discharge tube

Delivery tube

Immersion depth max.:: 40 cm

Suitable for use in:

Ex zone:: 0,1,2
Explosion groups:: IIA, IIB, IIC

Filling container

Adjusting the immersion depth:: Immersion tube can be shortened as required
For containers up to:: approx. 10 litres

How to fill

Drive type:: manually operated
Pump type:: Overpressure pump
Special features Pumps:: Conveyor pipe replaceable,incl. grounding cable

To the list of chemical resistance

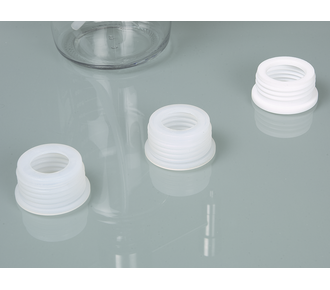

Accessories Thread adapters allow the standard connection thread GL 45 to be adapted to thread types S 40, GL 38 or GL 32.

Complementary products

Thread adapter solvent pump Mini

The thread adapter provides great flexibility when choosing a container for the hand pump. Thanks to its robust ETFE body and GL-45 connection standard, it enables the solvent pump to be easily and securely connected to smaller container openings.

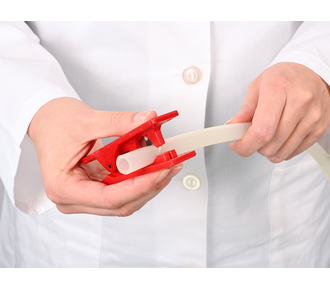

Hose cutter
