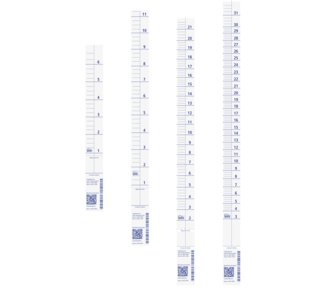

Mounting graduation for wide-necked jerrycans

Sticking the scale on the container

The scale is self-adhesive and can be attached anywhere on the jerrycan. However, it is recommended to attach the scale to the side of the outlet spout.

1. Degreasing the target surface

Degrease the surface of the jerrycan at the point where you want to apply the litre scale.

2. Marking at a height of 3 cm

Place an alignment mark at a height of 3 cm, measured from the bottom of the container.

3. Cutting off the excess part

Cut off the excess area below the adjustment line.

4. Remove the protective foil

Peel off the protective foil on the back of the litre scale.

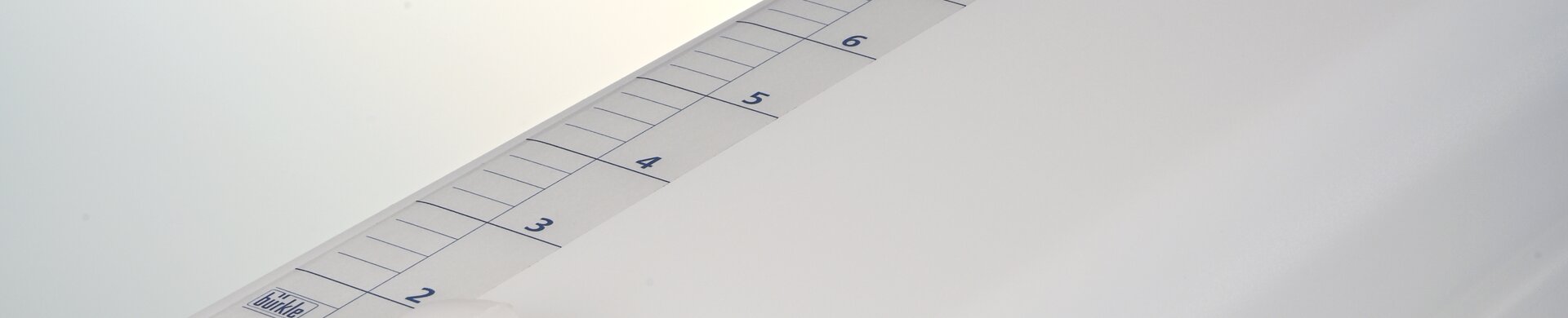

5. Sticking on the litre scale

Stick the dotted adjustment line congruently onto your marking at a height of 3 cm.

6. Pressing on the litre scale

Press the litre scale firmly.

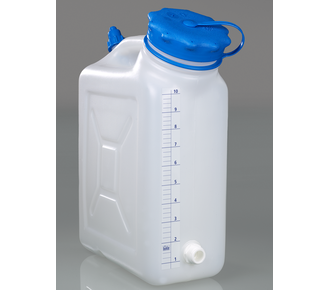

Graduation for wide-necked jerrycans Wide-necked jerrycans with/without threaded connector
