View in the flip catalogue
To all specifications

Packaging unit

Piece

Detailed information

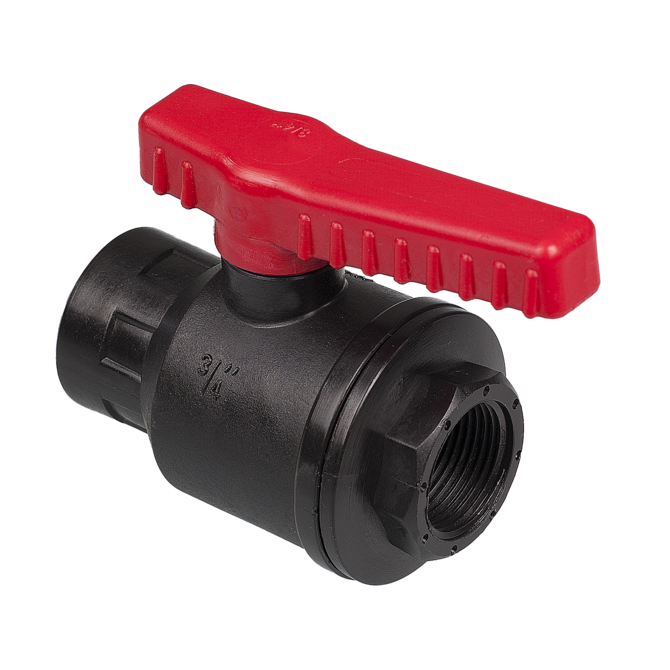

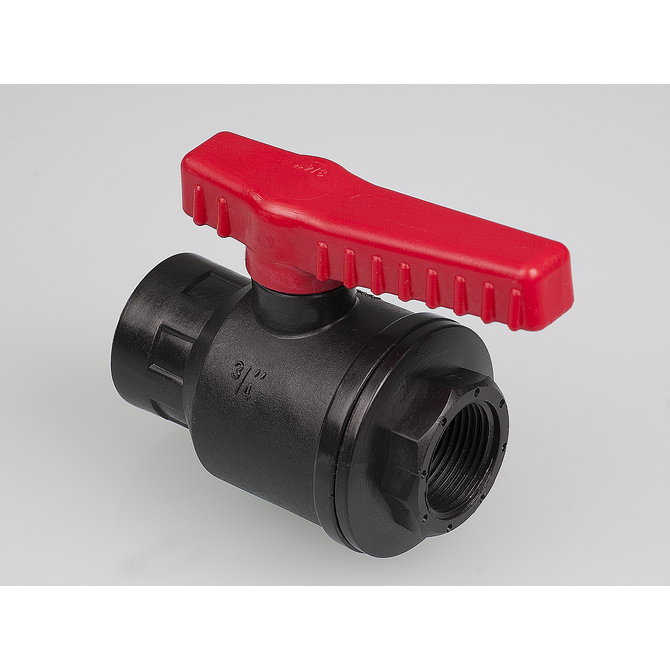

Ball valves for barrels made of PP for barrels with thread connections.
  • Ball valve PP for barrels

Specifications

General material

PP
Polypropylene

Further materials

FKM, FPM
Fluorine rubber

Further materials

PTFE
Polytetrafluoroethylene

Connection

Connection type:
Thread
Thread:
G 3/4 Zoll
Version:
Internal thread

Colouring

Colour:
black/red

Spigot outlet

Outlet type:
Thread
Thread:
G 3/4 Zoll
Version:
Internal thread

Operating pressure (at +20 °C)

Pressure max.:
10 bar

Operating temperature

Temperature max.:
80 °C

Nominal Ø

Nominal diameter:
20 mm

Dimensions

Length:
110 mm
Width:
54 mm
Height:
89 mm

Type of spigot

Design of the stopcock:
Chick cock
Flow rate:
low flow rate
Special features:
Extensive accessories
To the list of chemical resistance
