bk.product.specification-anchor-link.label

bk.product.packaging-unit.label

Pack with 10 pieces

Detailed information

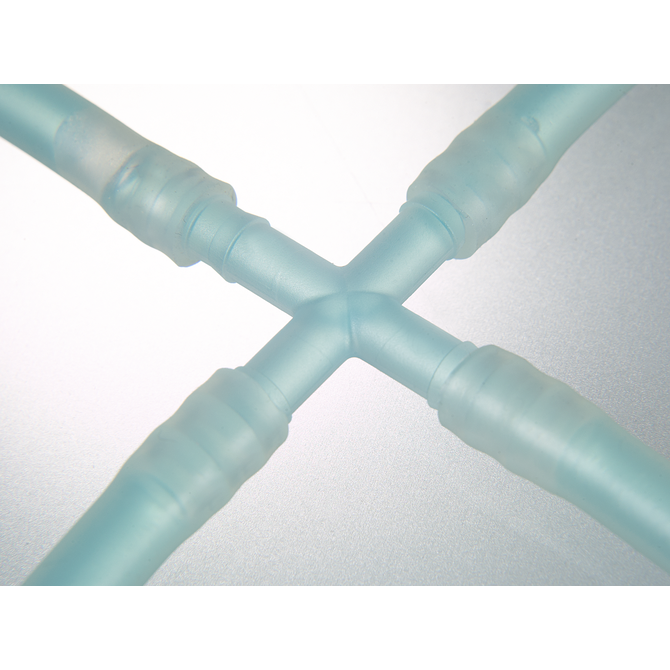

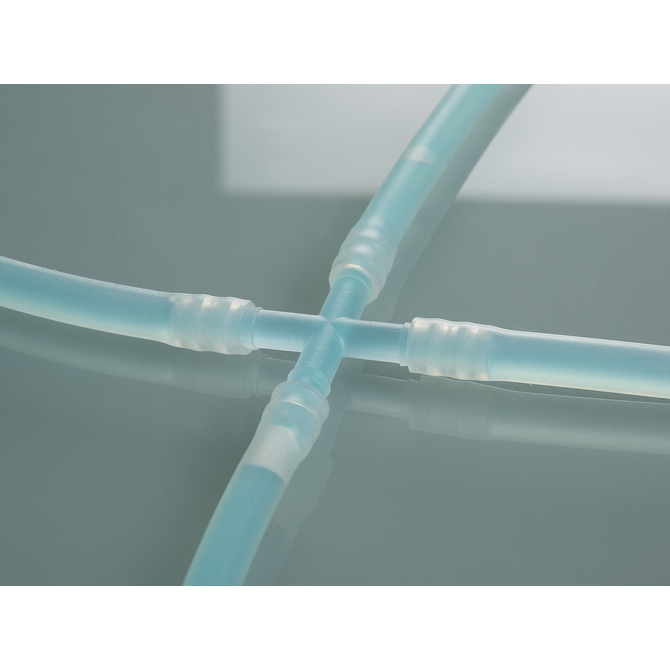

Cylindrical four-way hose connector to connect hoses.

bk.product.scope_of_application.tab_headline

Bürkle offers a large portfolio of different hose connectors that are used to extend, connect, branch, join and repair hoses, etc.
The ranges of application are diverse and thus the requirements for shape, size and material properties are broadly based.
  • Four-way-connectors PP

bk.product.specifications.title

bk.product.general_material.label

PP
Polypropylene

Coloring

Farbe:
colorless

Grommet suitable for

Für Schlauch-Ø innen von:
3 mm
Für Schlauch-Ø innen bis:
5 mm

Connector dimensions

Gesamtlänge:
40 mm
Breite:
40 mm
Gesamthöhe:
4.8 mm
Tüllen-Ø außen von:
4 mm
Tüllen-Ø außen bis:
4.8 mm

Operating temperature

Temperatur max.:
135 °C
Temperatur min.:
5 °C

Connector

Form:
X
Tülle:
cylindrical/straight
Funktion/Einsatzbereich:
to connect
