To all specifications

Packaging unit

Piece

Detailed information

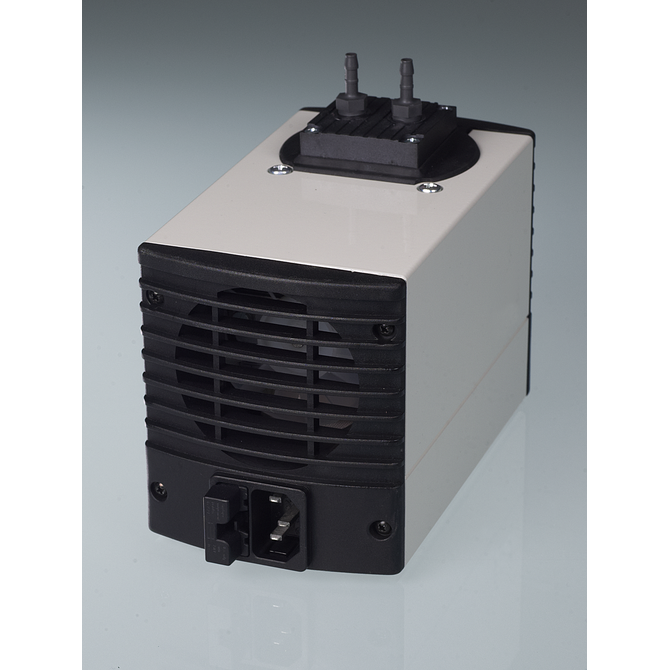

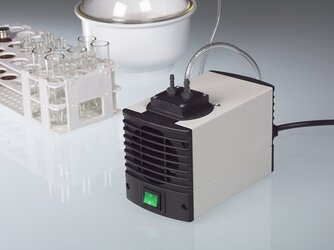

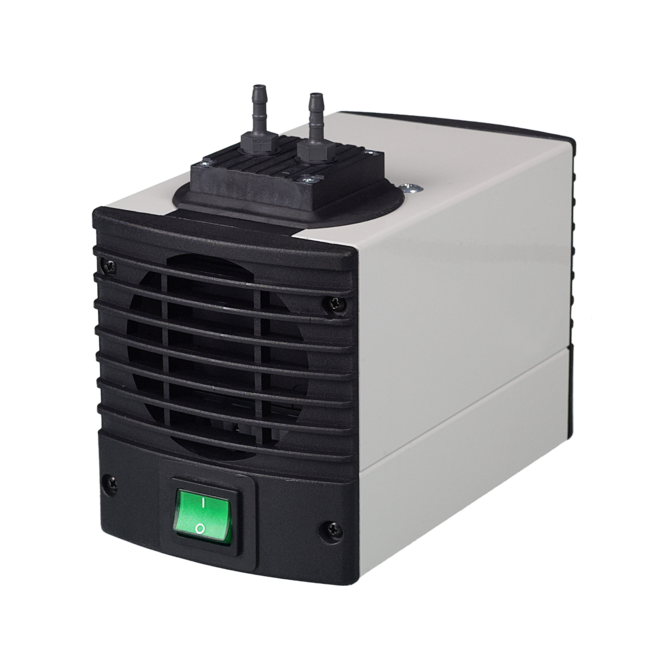

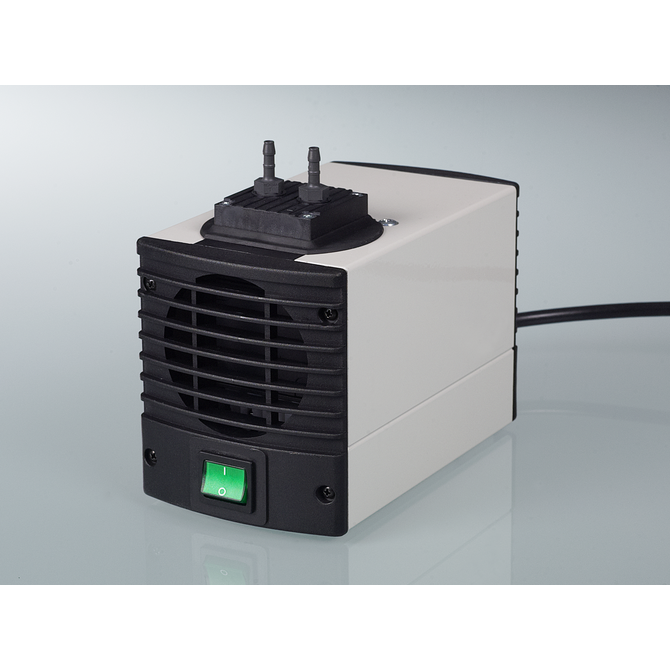

The AirJet Mini single-head membrane vacuum pump is suitable for a variety of applications in the laboratory and industry. The dry running membrane vacuum pump is able to pump, compact and evacuate 100 % oil-free, which means it does not distort results or add impurities, and can also be used as a compressor.

The membrane features a long service life and is available in two versions, EPDM for general applications and PTFE-coated for special applications.

Typical application area of the product

The AirJet Mini is used to pump and evacuate air and neutral or slightly aggressive or corrosive gases and vapours.
  • AirJet Mini membrane vacuum pump/compressor

Specifications

General material

PPS
Polyphenylene sulfide

General material

EPDM
Ethylene propylene diene monomer rubber

Further materials

FKM, FPM
Fluorine rubber

Connection

Connection type:
Tube nozzle
Connection Ø:
4 mm (0.16 in)

Throughput

Conveying capacity:
6 l/min

Dimensions

Length:
164 mm (6.46 in)
Width:
90 mm (3.54 in)
Height:
141 mm (5.55 in)

Material

Membranes:
EPDM

Complementary products

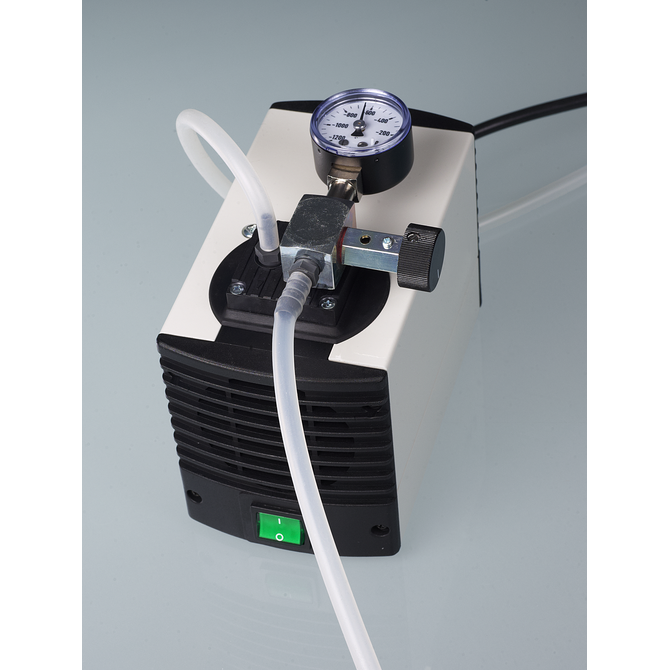

AirJet Mini fine regulation head

AirJet Mini fine regulation head

Fine regulation head to regulate the vacuum. Scaling: increments of 50/100 mbar.

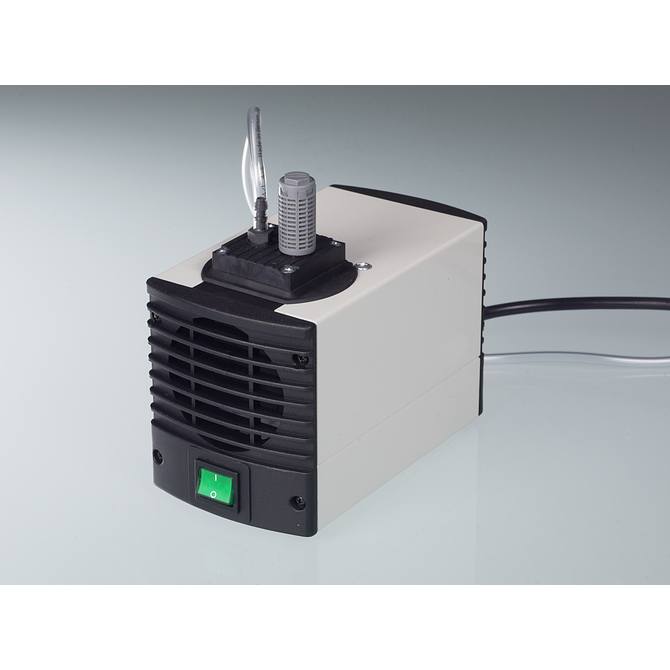

AirJet Mini sound absorber

AirJet Mini sound absorber

The sound absorber for AirJet Mini is mounted on the pressure side, connection thread G 1/8.

Similar products

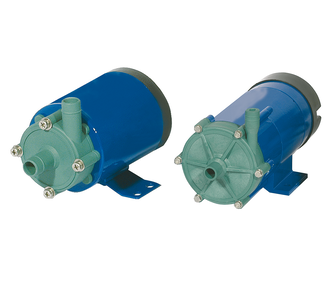

Magnetic drive pumps

Magnetic drive pumps

The magnetic centrifugal pumps are suitable for pumping acids, alkalis, alkaline and galvanic baths, photographic chemicals as well as radioactive, sterile and highly corrosive liquids. The non-contact magnetic drive means that no dynamic shaft seals are required, so the pump housing is hermetically sealed and does not allow any leaks.
Double diaphragm pump 1/4"

Double diaphragm pump 1/4"

Compressed air driven double diaphragm pump for small systems or in the laboratory area.

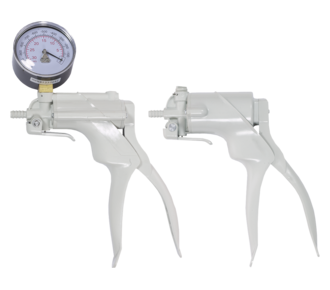

VacuMan vacuum or pressure pump
